Centauri Energy Server

The singular solution for power management

Omer Ghani describing Centauri Energy Server

Key Attributes

Handles torque loads allowing start-up of motors, compressors, and all forms of inductive loads with surge currents, without oversizing the system
Accepts 5x – 6x renewable input without oversizing the system
Plug-and-play connectivity to storage (does not require additional battery inverter for Sirius Energy Storage, Lead Acid or Li Ion)
Handles renewable intermittency by switching seamlessly between renewable generation and storage
Directly supplies the load from renewable generation during generation hours (does not route through the battery)
Charges storage during generation hours (concurrently as it supplies the load)
Plug-and-play connectivity to multiple DC or AC generation inputs
Seamless switching between multiple input sources without destabilizing the load
Energy blending capability for multiple input sources
Actively corrects power factor losses to 1 on the circuit caused by inductive and capacitive loads
Filters harmonics caused by the load
Includes built-in safeties, data logging, monitoring, and control features
Includes flexible protocols to communicate with and respond to signals from the grid
Is configurable to work in islanded or non-islanded modes. In non-islanded mode, is bi-directional.
Auto genset start/stop/control when genset is connected
Modular and scalable

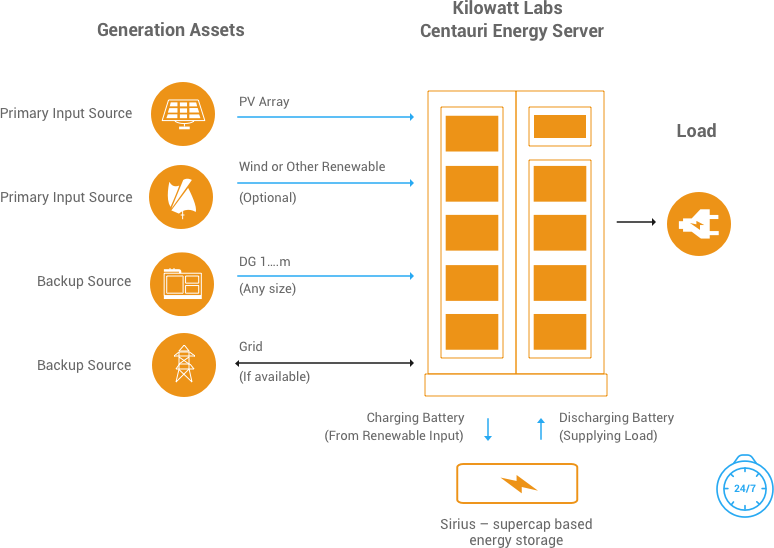

centauri-diagram

Feature	Centauri	Legacy System
Centauri Advantage Over Legacy Systems
Torque Load Handling (handles surge currents enabling it to independently run all types of loads, inductive, resistive and capacitive)	1,000% for 2 sec	Not Available
System efficiency (generation to output)	96.7%-99.1%	60%-80%
PV connection	6x rated capacity	1.5x rated capacity
Battery inverter, flexibility in type of battery connectivity	Built-in (Supercapacitor based/Lead Acid/Li Ion)	No-external
Power factor correction of load and harmonics filtering	Yes	No
Multiple source input (AC or DC)	Yes-plug-and-play	No
Blended energy output from multiple input sources (AC and/or DC)	Yes	No
Seamless switching between sources	Yes	No
Auto genset start/stop/control	Yes	No
Data logging, monitoring and control	Yes	No-external
Islanding/anti-islanding	Yes	No
Bi-directional option available	Yes	Yes
Built-in safeties	Yes	No
Modular	Yes	No
Plug-and-play (no external hardware or software required)	Yes	No

Products

Centauri Energy Server can be deployed in any location, to service any kind of load profile (from kW to MW), with or without grid access or generator availability. The Centauri Energy Server is a fully integrated power electronics and software platform that requires no additional hardware or software to function. While the Centauri Energy Server can operate as a stand-alone device, it can communicate with external hardware and software if needed.

The Centauri Energy Server replaces integrated systems comprised of multiple components (PV inverter + charge controller + battery inverter + communication software and hardware + safety devices etc.) in all use-cases. The Centauri Energy Server can be deployed, with energy storage, in:

Residential
Commercial and industrial
University campuses
Mission critical facilities
Military bases
Mines
Agricultural farms
Oil and gas infrastructure
Island states
Prefabricated housing
Displaced persons’ camps
Disaster relief
Private virtual networks
Data centers

Feature	3 - Phase Download Data Sheet	Single Phase
Centauri Server Models
Continuous Power	20kW - 1 MW	2.5kW to 8kW
Generation Inputs	PV	PV
	Wind	Grid
	Grid	Diesel Generator
	Diesel Generator (s)
	Grid-tied
Storage Inputs	Sirius supercapacitor - based storage	Sirius supercapacitor - based storage
	Lead Acid	Lead Acid
	Li Ion	Li Ion
Load	3 - phase AC output (50Hz or 60Hz)	3 - phase AC output (50Hz or 60Hz)
Communication Module
Automation Module
Transformer Module (for input and/or output voltage control)

Kilowatt Labs’ products are available in selected markets through our network of resellers. Please contact your reseller for information and to buy. Sign up here for product updates and to be the first to hear of availability in your market.
